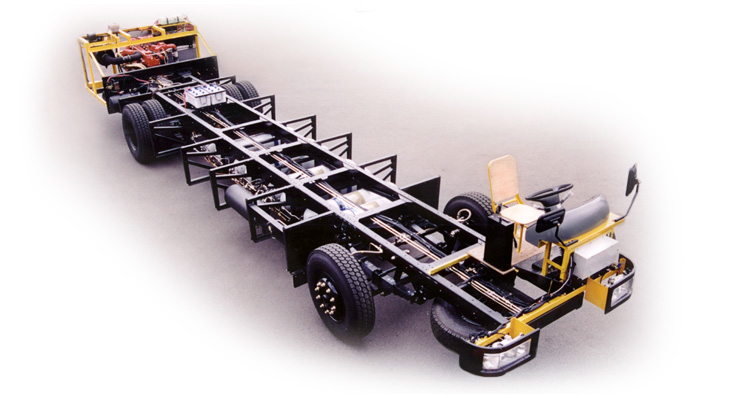

BC211MA/BC211MA / 1 STEP / DIESEL/CNG(SDA/KD)
SPECIFICATION
OVERALL LENGTH(mm) 10,810 11,810
OVERALL WIDTH (mm) 2,490 2,490
OVERALL HEIGHT (mm) 2,030 2,030
TREAD (mm) FRONT 2,096 2,096
REAR 1,826 1,826
OVERHANG (mm) FRONT 2,300 2,600
REAR 3,110 3,110
WHEEL BASE (mm) 5,400 6,100
ENGINE MODEL DE12TIS DL08 GL11K DE12TIS DL08 GL11K
HORSE POWER(ps) 290 300 290 290 300 290
TORQUE(kg.m) 115 115 115 115 115 115
DISPLACEMENT(cc) 11,051 7,640 11,051 11,051 7,640 11,051
EXHAUST EMISSION EURO II EURO III EURO V EURO II EURO III EURO V
MIN TURNING RADIUS (m) 12.5
FUEL TANK (L) 200 1,032 200 1,032
SUSPENSION FRONT/REAR AIR
TIRE FRONT/REAR 11R22.5

1. Specifications are subject to change without prior notice to improve vehicle performance.
2. As the above is just basic specification, please discuss more details with overseas sales team.
3. Euro4~Euro6 engine could be applied after detailed discussion.
