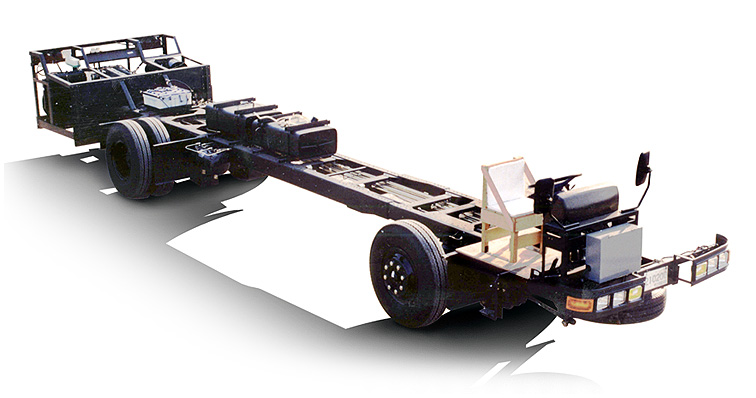

BH095
BV120
BS120CN
BV120MA
BC212MA
BC211M
BS110
BS106
BF106
SPECIFICATION
OVERALL LENGTH(mm) 9,198
OVERALL WIDTH (mm) 2,490
OVERALL HEIGHT (mm) 2,000
TREAD (mm) FRONT 2,050
REAR 1,853
OVERHANG (mm) FRONT 1,783
REAR 2,715
WHEEL BASE (mm) 4,700
ENGINE MODEL DL08
HORSE POWER(ps) 270
TORQUE(kg.m) 100
DISPLACEMENT(cc) 7,640
MIN TURNING RADIUS (m) 10.4
FUEL TANK (L) 200
SUSPENSION FRONT/REAR AIR SPRING
TIRE FRONT/REAR 11R 22.5-16PR
