| SPECIFICATION |
| OVERALL LENGTH(mm) |
11,550 |
| OVERALL WIDTH (mm) |
2,490 |
| OVERALL HEIGHT (mm) |
1,867 |
| TREAD (mm) |
FRONT |
2,050 |
| REAR |
1,853 |
| OVERHANG (mm) |
FRONT |
2,225 |
| REAR |
3,063 |
| WHEEL BASE (mm) |
6,100 |
| ENGINE |
MODEL |
DE12TIS |
DL08 |
| HORSE POWER(ps) |
310 |
300 |
| TORQUE(kg.m) |
125 |
115 |
| DISPLACEMENT(cc) |
11,051 |
7,640 |
| MIN TURNING RADIUS (m) |
11.7 |
| FUEL TANK (L) |
320(200) |
| SUSPENSION |
FRONT/REAR |
STD / WIDE AIR SPRING(STD SUS) |
| TIRE |
FRONT/REAR |
11R 22.5-16PR |
|
|
|

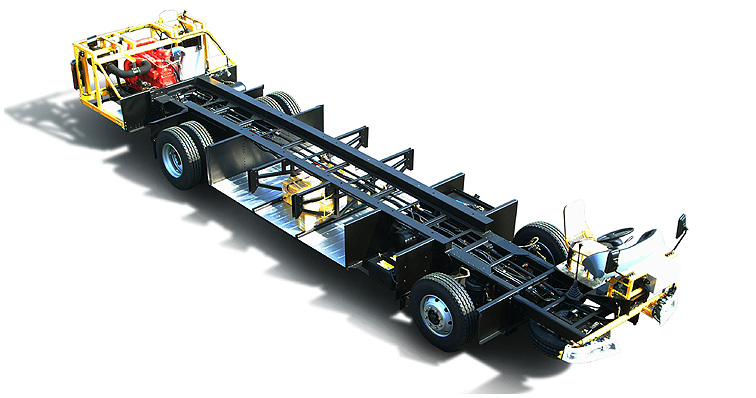

BH120F
