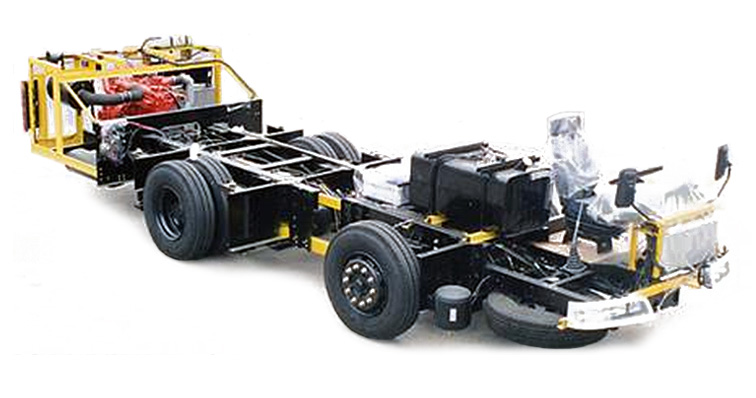

BH120K
BH120E
BH117L
BH117K
BH116
BH115
BH115E
BV113
BH095
BV120
BS120CN
BV120MA
BC212MA
BC211M
BS110
BS106
BF106
SPECIFICATION
OVERALL LENGTH(mm) 8,502
OVERALL WIDTH (mm) 2,490
OVERALL HEIGHT (mm) 1,867
TREAD (mm) FRONT 2,050
REAR 1,853
OVERHANG (mm) FRONT 2,230
REAR 3,063
WHEEL BASE (mm) 3,000
ENGINE MODEL DV15TIS
HORSE POWER(ps) 390
TORQUE(kg.m) 160
DISPLACEMENT(cc) 14,618
MIN TURNING RADIUS (m) 10.2
FUEL TANK (L) 400L
SUSPENSION FRONT/REAR WIDE AIR SPRING
TIRE FRONT/REAR 12R 22.5-16PR
