| SPECIFICATION |
| OVERALL LENGTH(mm) |
11,678 |
| OVERALL WIDTH (mm) |
2,490 |
| OVERALL HEIGHT (mm) |
1,960 |
| TREAD (mm) |
FRONT |
2,050 |
| REAR |
1,853 |
| OVERHANG (mm) |
FRONT |
2,115 |
| REAR |
3,063 |
| WHEEL BASE (mm) |
6,500 |
| ENGINE |
MODEL |
DE12TIS |
DV11 |
| HORSE POWER(ps) |
360 |
360 |
| TORQUE(kg.m) |
145 |
160 |
| DISPLACEMENT(cc) |
11,051 |
10,964 |
| MIN TURNING RADIUS (m) |
12 |
| FUEL TANK (L) |
400(200+200) |
| SUSPENSION |
FRONT/REAR |
WIDE AIR SPRING |
| TIRE |
FRONT/REAR |
12R 22.5-16PR |
|
|
|

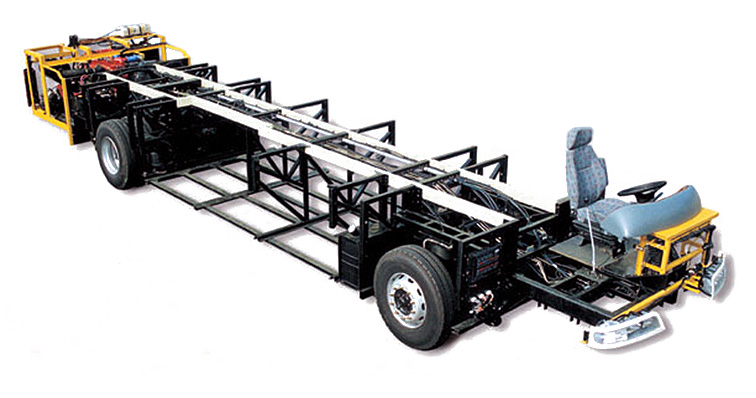

BH120F
