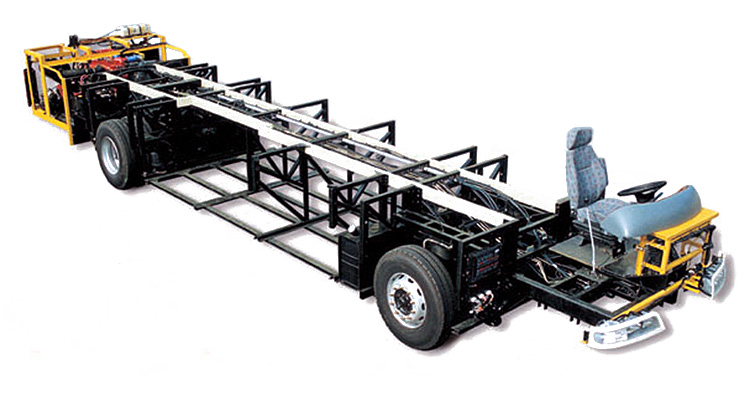

BX212
BH120
BH120SHD
BH120K
BH120E
BH117L
BH117K
BH116
BH115
BH115E
BV113
BH095
BV120
BS120CN
BV120MA
BC212MA
BC211M
BS110
BS106
BF106
SPECIFICATION
OVERALL LENGTH(mm) 11,678
OVERALL WIDTH (mm) 2,490
OVERALL HEIGHT (mm) 1,960
TREAD (mm) FRONT 2,050
REAR 1,853
OVERHANG (mm) FRONT 2,115
REAR 3,063
ENGINE MODEL DV11 ISL350
HORSE POWER(ps) 360 350
TORQUE(kg.m) 160 134
DISPLACEMENT(cc) 10,964 8,900
MIN TURNING RADIUS (m) 12
FUEL TANK (L) 400(200+200)
SUSPENSION FRONT/REAR WIDE AIR SPRING
TIRE FRONT/REAR 12R 22.5-16PR
